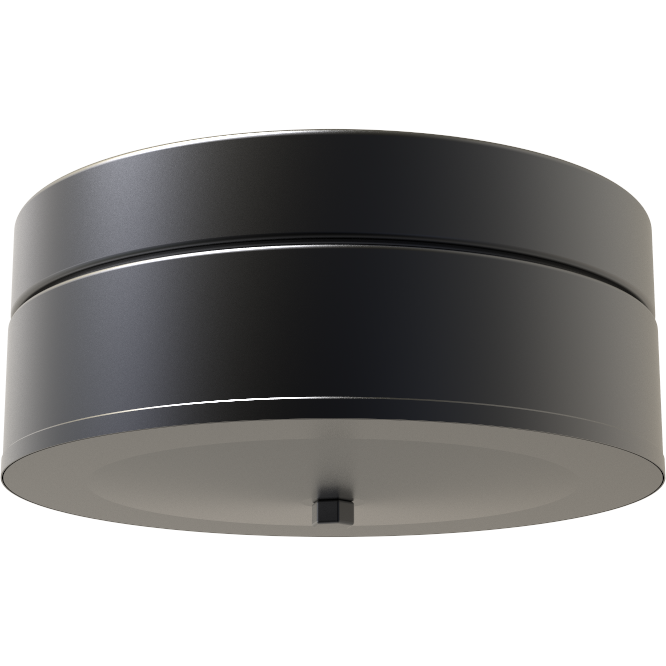

TWPro Matt Black – Tee Cap c/w Drain – 125mm

Description

TWPro MB – Tee Cap c/w Drain – 125 Used to cap off the bottom or unused end of a 90/135 Tee, this is usually fitted to the bottom of a base support to allow easy removal for sweeping and access. This part includes a 10mm threaded drain to allow the connection of a drain pipe to carry away excess condensate from the flue system. APPLICATION For use on solid fuel and gas/oil appliances, e.g., woodstoves, gas coal effect fires, oil boiler, gas boiler, and any solid fuel appliances. CONSTRUCTION Outer skin is made from 304 stainless steel and is 0.4mm thick, coated in a high-temperature black finish. The inner skin is made from 316 grade stainless steel and is 0.4mm thick. Insulation is compressed rockwool with a density of 200kg/m3. All parts are fully welded. Distance to combustibles is 50mm. APPROVALS TWPro is HETAS Approved and is CE marked. Designation Number is EN1856-1 T600 N1 W V2 L50040 G50 and EN1856-1 T200 P1 W V2 L50040 O20. INSTALLATION TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band (supplied). Make sure that you keep a distance of 50mm from the outside of the flue to any combustible material (wood, plasterboard). Designation: EN1856-1 T600 N1 W V2 L50040 G50
